Tool Support Systems for Air and Electric Tools



- 1” sq., 18 gauge tubing
Overall height: 37” for B1, 43” for B2

- 3 standard boom lengths

- Polished chrome finish

- 3” sq. welded base for mounting; screws provided

- Sliding tool positioner provided; internal trolley option for booms

- Balancers and tools available separately





B1A-T (37"), B2A-T (43")
A Stationary Tool Support for multiple tools, one operator.
An 18” deep boom with two 9” tees that separate the tools. Equipped as shown, with built in air supply, quick disconnect couplings, 2-12’ coil hoses with adapters for air tools, and 6’ limp hose with 1/4” male inlet for hook-up to in-house air supply.

Options: bench clamps; balancers; torque reaction arm.

B1E-T, B2E-T
A Basic Tool Support for Multiple Electric Tools
Same as B1-T or B2-T and provided with six clamps to keep cord out of the way.

B1A-T-FRL, B2A-T-FRL
Same as B1A-T or B2A-T with factory installed filter, regulator, gauge and lubricator

B1-T, B2-T
A Basic Tool Support for multiple tools.
Same as B1A-T or B2A-T without air accessories.

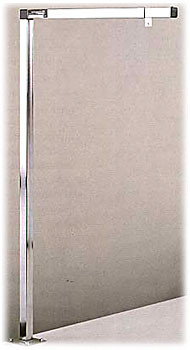

B1, B2 (pictured above)
- The Basic Tool Support with stationary boom for a multitude of uses.
- Use individually or in combination with other models for added flexibility. Specify boom length: 18”, 24”, 30” by part number

Options: bench clamps; balancers; torque reaction arm.

B1-S, B2-S
A swivel tool support
- One of our most popular models with over 5’ of reach at the work station.
- Swivels 360°
Specify boom length: 18”, 24”, 30” by part number

Options: bench clamps; balancers; torque reaction arm.

(37”H)
B1-18
B1-24
B1-30
B1-S-18
B1-S-24
B1-S-30
(43”H)
B2-18
B2-24
B2-30
B2-S-18
B2-S-24
B2-S-30

B1A-S-FRL, B2A-S-FRL
The Most Complete Assembly Area Support for Air Tools

For quick monitoring and control of air pressure, filtration, and lubrication, equipped with filter, regulator, gauge, and lubricator to reduce tool maintenance and down time. Supplied with quick-disconnect coupling, 12’ coil hose with adaptor for air tool, and 6’ limp hose with 1/4” male inlet for hook-up to in-house air supply. FRL factory installed. Specify boom length: 18”, 24”, 30” by part number.

Options: bench clamps; balancers; torque reaction arm.

Models (37”H)
B1A-S-FRL-18
B1A-S-FRL-24
B1A-S-FRL-30
Models (43”H)
B2A-S-FRL-18
B2A-S-FRL-24
B2A-S-FRL-30





Feather-Lite tool balancers for tools up to 40lbs (20kg)
Heavy Duty Support Systems
Options and Accessories

B1A-S
The Most Efficient Assembly Area Support for Air Tools with Swivel Boom
Equipped for rapid set-up and instant tool changes by hand, including a mounted, quick-disconnect coupling, 12’ coil hose with adapter for air tool, and 6’ limp hose with 1/4” swivel male inlet for hook-up to in-house air supply. Specify boom length: 18”, 24”, 30” by part number.

Options: bench clamps; balancers; torque reaction arm.



B1E, B2E
A Basic Tool Support with Stationary Boom for Electric Tools
Provided with tool positioner and 3 clamps to keep cord out of way. Specify boom length: 18”, 24”, 30” by part number.

Options: bench clamps; balancers; torque reaction arm.

B1E-S, B2E-S
An Electric Tool Support with Swivel Boom
Provided with 3 cord clamps and tool positioner. Specify boom length: 18”, 24”, 30” by part number.

Options: bench clamps; balancers; torque reaction arm.

Models (37”H)
B1E-18
B1E-24
B1E-30
B1E-S-18
B1E-S-24
B1E-S-30

Models (43”H)
B2E-18
B2E-24
B2E-30
B2E-S-18
B2E-S-24
B2E-S-30

Height:
B1 Models (37"): 94cm
B2 Models (43"): 109cm

Boom length:
18"=45.7cm
24"=61cm
30"=76cm

Metric Sizes

Height:
B1 Models (37"): 94cm
B2 Models (43"): 109cm

Boom length:
18"=45.7cm
24"=61cm
30"=76cm
